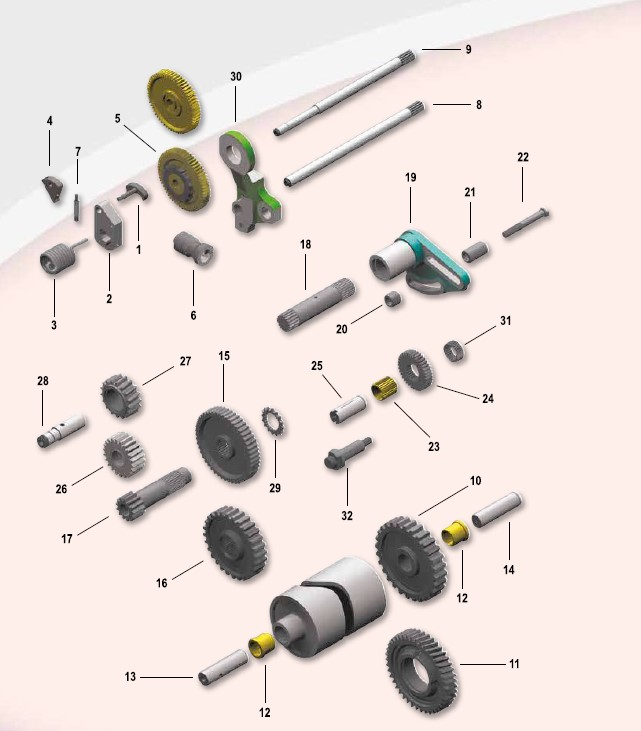

Take up Drive

Catalog NumberPart NumberDescription
15-001911110268RATCHET 1:60
15-003911310243RATCHET 2:60
15-LD122911110235SWITCH LEVER
15-LD093911310209GUIDE BOLT
15-005911990079RATCHET WHEEL Z=15
15-007N/ARATCHET WHEEL Z=30
15-LD084924609140COMBINDED RADIAL SUPPORT 40X48X61.5X22.2
15-009911110264GLOBOID WORM WHEEL PU 1:60 W.T RACHET
15-011911110242GLOBOID WORM WHEEL PU 4:60 W.T RATCHET
15-013911110251GLOBOID WORM WHEEL PU 2:60 W.T RATCHET
15-015N/AGLOBOID WORM WHEEL PU 2:60 6 HOLE W.T RATCHET
15-017912510114GLOBOID WORM WHEEL PU 8:55 W.T RATCHET
15-019912510113GLOBOID WORM WHEEL P7100 1:60 W.T RATCHET
15-021912510112GLOBOID WORM WHEEL P7100 2:60 W.T RATCHET
15-023912510111GLOBOID WORM WHEEL P7100 4:60 W.T RATCHET
