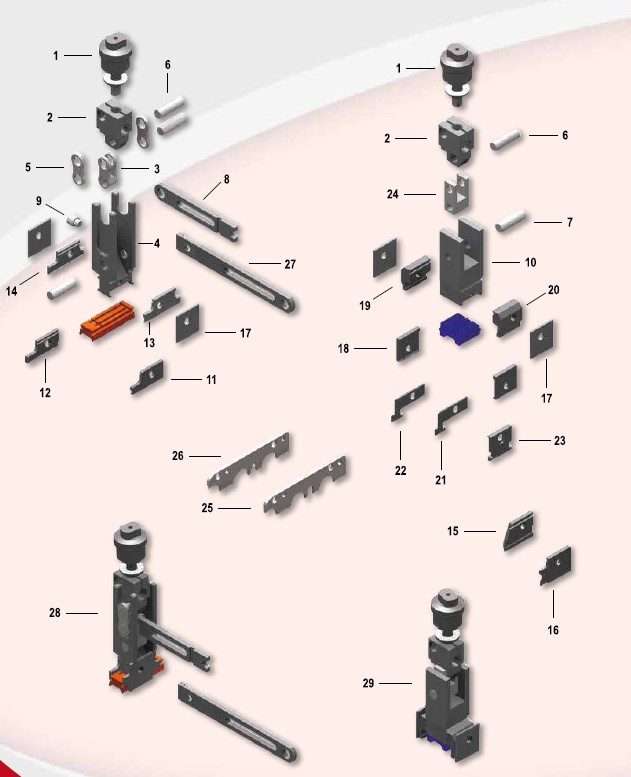

Brake Mechanism

Catalog NumberPart NumberDescription
10-001911827023REAR PROJECTILE BRAKE D1
10-003911327306REAR PROJECTILE HOLDER D1
10-005911827016THREADED PIN M12X0.5MM
10-007911327184THREAD BLOCK G M12X0.5
10-009911327229RIVET PIN SHORT D10X20
10-011911327233RIVET PIN LONG
10-013911327305FORKED LINK
10-015911327393REAR SIDE PLATE KS D1
10-017911327392REAR SIDE PLATE WS D1
10-021911827022FRONT PROJECTILE BRAKE D1
10-023911827019FRONT HOLDER OF PROJECTILE BRAKE D1
10-LD036911127157RIVET STUD 6/10X15
10-025911827016THREADED PIN M12X0.5MM
10-027911327184THREAD BLOCK M12X0.5 LEFT
10-029911327229RIVET PIN SHORT D=10X20MM
