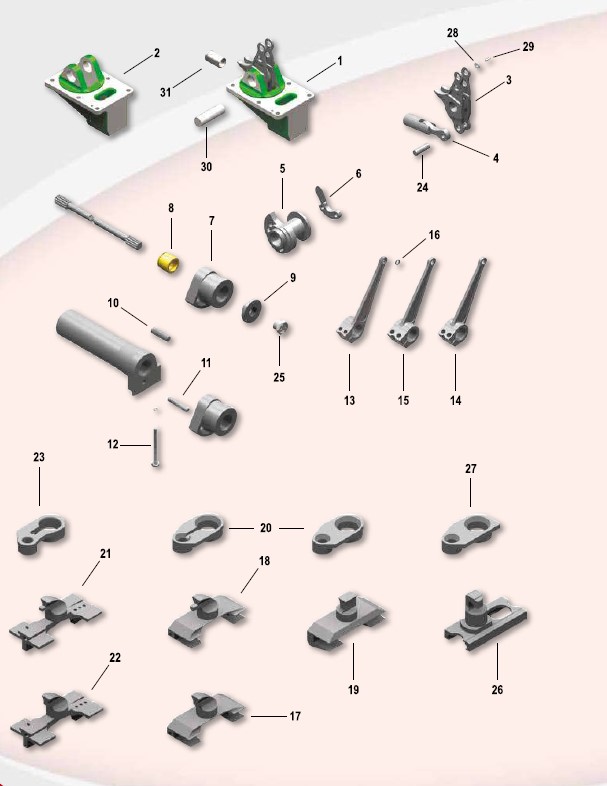

Picking Mechanism
| Catalog Number | Part Number | Description |
|---|---|---|
| 04-001 | 930122709 | PICKING SHOE PS |
| 04-003 | 911122190 | PICKING SHOE TW11 |
| 04-005 | 911322278 | PICKING SHOE PU W.NOSE D1 |
| 04-007 | 911322279 | PICKING SHOE PU W.NOSE D2 |
| 04-009 | 911322275 | PICKING SHOE PU W.T NOSE |
| 04-011 | 911322903 | PICKING SHOE P7100 D1 W.T NOSE W.T GROOVE |
| 04-013 | 911322607 | PICKING SHOE P7100 D2 W.T NOSE W.T GROOVE |
| 04-015 | 911322539 | PICKING SHOE P7100 D1 W.NOSE W.T GROOVE |
| 04-017 | N/A | PICKING SHOE P7100 D2 W.NOSE W.T GROOVE |
| 04-019 | 911322966 | PICKING SHOE P7100 D1 W.T NOSE W.GROOVE |
| 04-021 | N/A | PICKING SHOE P7100 D2 W.T NOSE W.GROOVE |
| 04-023 | 911422007 | PICKING SHOE P7100 D1 W.NOSE W.GROOVE |
| 04-025 | N/A | PICKING SHOE P7100 D2 W.NOSE W.GROOVE |
| 04-027 | 740854000 | PICKING SHOE ELASTIC P7150 D1 W.NOSE |
| 04-029 | 740951000 | PICKING SHOE ELASTIC P7150 D2 W.T NOSE |
